Photex Laser offers405nm Violet Laser Moduleswith 1–200mW customizable
power options for industrial positioning, optical alignment and laser projection applications.

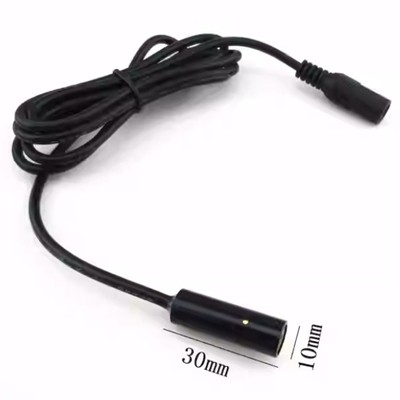

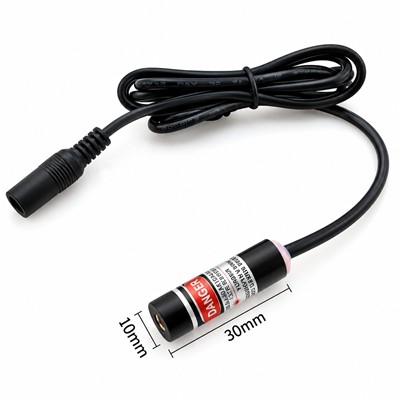

Featuring adjustable or fixed focus, a compact Ø10 × 30mm aluminum housing and
DC 2.8–5.2V operation, these modules provide precise violet laser dot projection for OEM equipment.
405nm Violet Laser:Clear blue-violet dot projection.
Power Options:1–200mW customization available.
Adjustable Focus:Variable spot size for different distances.
Compact Housing:Standard Ø10 × 30mm aluminum body.
Stable Driver:Intelligent IC control.
Flexible Voltage:DC 2.8–5.2V.
OEM / ODM:Custom power, housing and optical configurations.
| Parameter | Specification |
|---|---|
| Wavelength | 405nm |
| Laser Color | Violet / Blue-Violet |
| Power Options | 1–200mW |
| Output Pattern | Dot |
| Focus | Adjustable / Fixed |
| Operating Voltage | DC 2.8–5.2V |
| Operating Current | Model Dependent |
| Housing Size | Ø10 × 30mm |
| Housing Material | Aluminum Alloy |
| Spot Size | Adjustable, Application Dependent |
| Customization | OEM / ODM Available |
| Model | Nominal Power | Max. Current |
|---|---|---|
| ZLM1AD405-10BC/BD | 5mW* | ≤20mA |
| ZLM5AD405-10BC/BD | 5mW | ≤35mA |
| ZLM20AD405-10BC/BD | 20mW | ≤70mA |
| ZLM100AD405-10BC/BD | 100mW | ≤150mA |
| ZLM150AD405-10BC/BD | 150mW | ≤200mA |
| ZLM200AD405-10BC/BD | 200mW | ≤300mA |
The ZLM1 model is listed as 5mW in the supplied specifications; please confirm its actual output rating before ordering.
Industrial Laser Positioning
Laser Marking & Engraving Equipment
Garment & Shoe Manufacturing
Button Sewing Machines
Optical Alignment Systems
OEM Laser Projection Equipment
Photex Laser supports customized:
Wavelength & Output Power
Adjustable / Fixed Focus
Spot Size & Working Distance
Housing Dimensions & Voltage
Cable Length & Mounting Options
Precision Laser Dot Projection
Compact Industrial Design
Multiple Power Configurations
Flexible OEM / ODM Solutions
Professional Technical Support
Q: Is the laser focus adjustable?
Yes. Adjustable and fixed-focus versions are available.
Q: What power options are available?
Custom configurations from 1mW to 200mW can be evaluated.
Q: Can the housing and voltage be customized?
Yes. OEM / ODM configurations are supported.
Looking for a reliable405nm Violet Laser Module Manufacturer?
ContactPhotex Laserfor samples, technical specifications and customized solutions.
Send us your required power, working distance, focus type and quantity for a competitive quotation.
