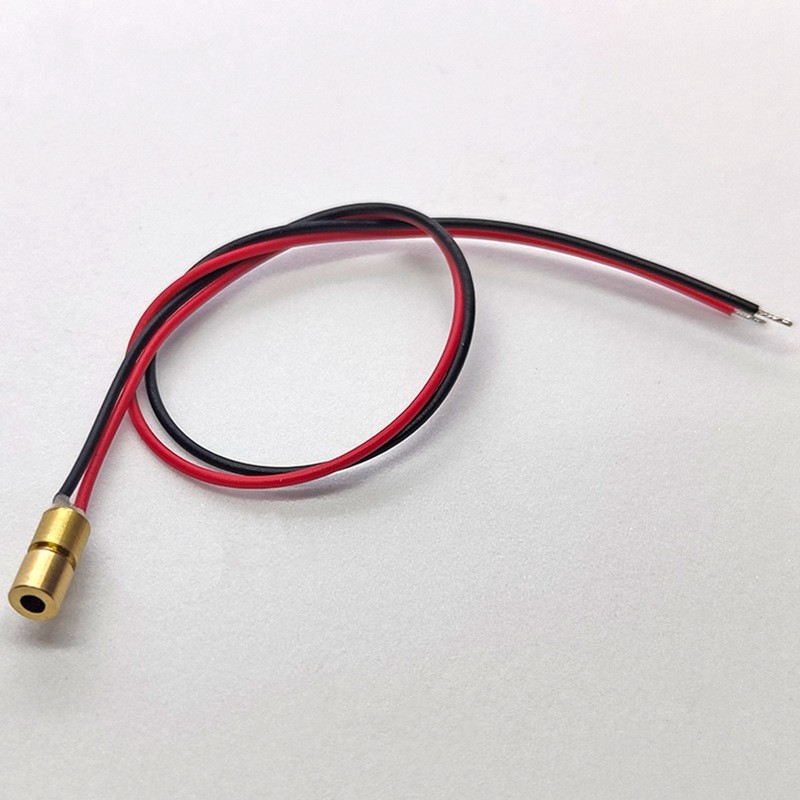

The 650nm 10mW Ultra-Mini Red Dot Laser Moduleis a compact semiconductor laser designed for calibration, positioning, alignment and OEM equipment integration where installation space is extremely limited.

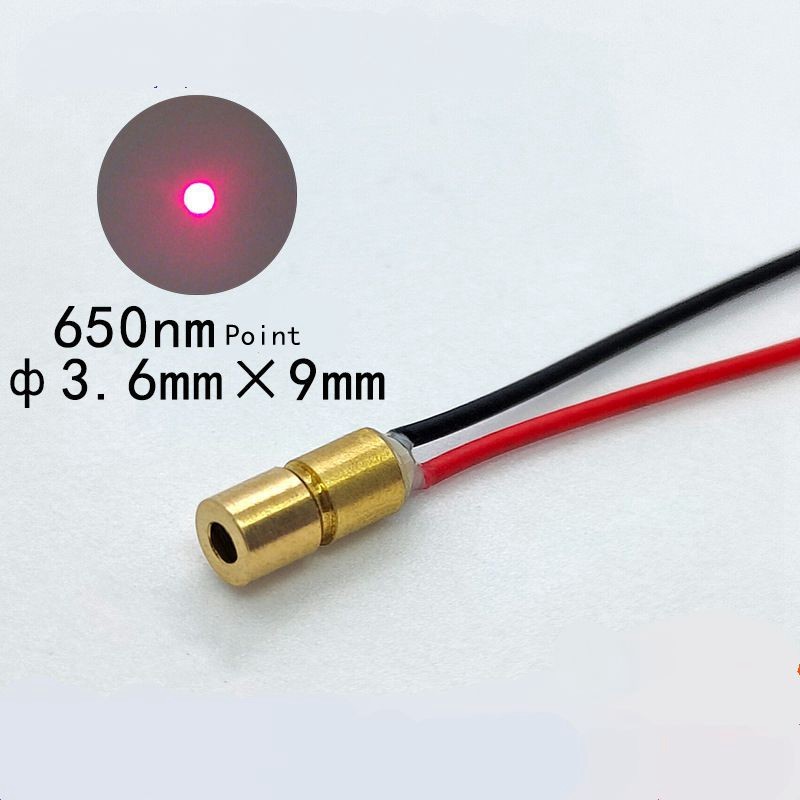

Featuring an ultra-smallØ3.6×9mm copper housing, APC control circuit and adjustable or fixed-focus options, the module provides a visible 650nm red laser dot with stable output and low power consumption.
The standard model isRP4565010D, with10mW output powerand650nm ±10nm wavelength. Other power options, including0.3mW, 0.5mW and 1mW, are also available.
| Parameter | Specification |
|---|---|
| Product Type | Ultra-Mini Red Dot Laser Module |
| Model | RP4565010D |
| Wavelength | 650nm ±10nm |
| Output Power | 10mW |
| Laser Color | Red |
| Beam Pattern | Dot |
| Spot Shape | Elliptical |
| Standard Size | Ø3.6×9mm |
| Housing Material | Copper |
| Housing Type | All-Metal Shell |
| Surface Finish | Natural Bronze-Colored Copper |
| Working Distance | <200m under suitable indoor conditions |
| Focus Mode | Adjustable Focus / Fixed Focus Optional |
| Standard Focus | Adjustable Focus |
| Circuit Control | APC |
| Working Current | <60mA |
| Operating Temperature | -10°C to +50°C |
| Storage Temperature | -20°C to +70°C |
| Service Life | >10,000 Hours Continuous Operation |
| Tail Wire | 28# Red & Black Wire, Approx. 15cm |
| Optional Cable | 1m DC Female Plug Cable |
| Safety Class | Class IIIB |
| Package Content | 1 × Laser Module |

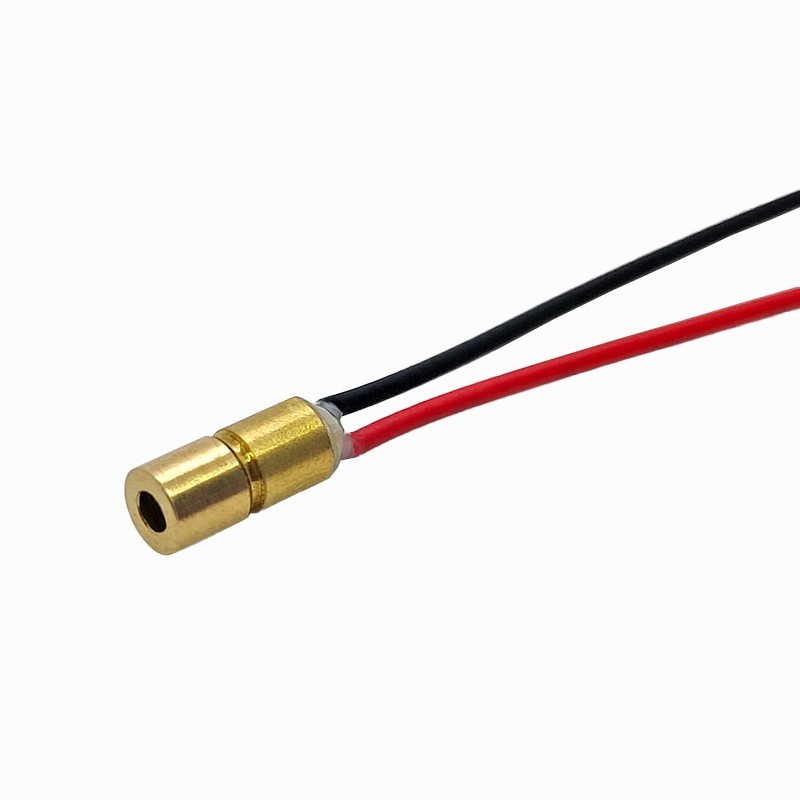

The main advantage of this laser module is its miniature mechanical structure.
With a housing size of onlyØ3.6×9mm, it is suitable for applications where conventional laser modules cannot fit.
Typical integration scenarios include:
The module generates a visible 650nm red laser dot for alignment, indication and calibration applications.
Typical optical characteristics include:

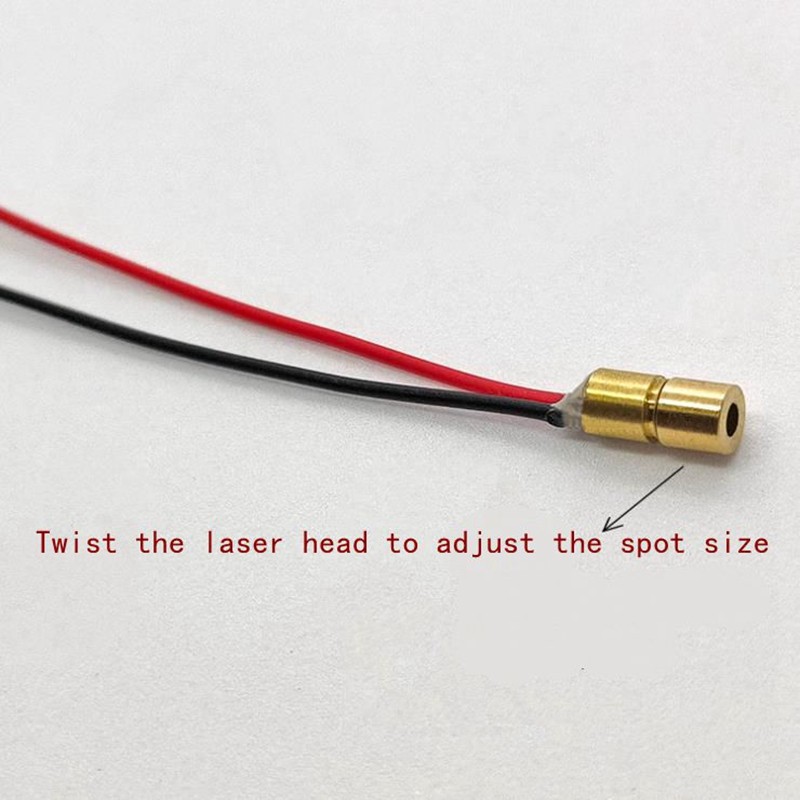

The focus can be adjusted according to the required working distance to obtain the best spot size and clarity.
Actual visibility and effective working distance depend on ambient light, target reflectivity and focusing conditions.
The integrated APC circuit helps maintain stable optical output during operation.
Typical electrical characteristic:
This compact driver design is suitable for miniature OEM systems requiring stable red laser output.
The Ø3.6×9mm platform is available with several output power options:
Different power configurations may require different laser safety classifications and control measures.
Standard:
Optional:
Photex Laser provides ultra-miniature 650nm red dot laser modules for calibration, positioning, alignment and OEM optical applications.
