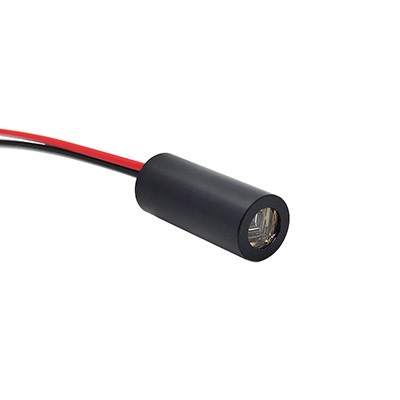

The650nm Red Line Laser Module S956501Lis a compact
visible laser source designed foralignment, positioning, indication and industrial equipment integration.
Featuring aΦ9×21mm cylindrical aviation aluminum housing,
this compact line laser module is designed for applications where installation space is limited.
The module generates a clear and stable650nm red laser line. The standard fan angle is90°,
while multiple line angles are available for different application requirements.
WithAPC circuit control, fixed-focus optical design and a typical operating voltage of
2.8–5.2V DC, the module can be easily integrated into various optical and electronic systems.
| Item | Specification |
|---|---|
| Model | S956501L |
| Wavelength | 650nm ±10nm |
| Output Power | <1mW |
| Size | Φ9 × 21mm |
| Laser Type | Red Line Laser |
| Line Width | <1.5mm @ 0.5m |
| Fan Angle | 5° / 15° / 30° / 45° / 60° / 90° / 110° / 130° |
| Standard Angle | 90° |
| Focusing | Fixed Focus |
| Control | APC |
| TTL | Optional / Custom |
| Operating Voltage | 2.8–5.2V DC |
| Operating Current | <30mA |
| Operating Temperature | -10°C to +50°C |
| Storage Temperature | -20°C to +70°C |
| Lifetime | >10,000 hours |
| Housing | Aviation Aluminum |
| Surface Finish | Black Anodized |
| Safety Class | Class II |
Different applications require different laser line coverage.
The S956501L can be configured with:
5° / 15° / 30° / 45° / 60° / 90° / 110° / 130°
The90° line angle is the standard configuration.
For OEM projects, the appropriate line angle can be selected according to the required working distance and coverage area.
The smallΦ9×21mm cylindrical designallows the laser module to
be integrated into equipment with limited installation space.
The aviation aluminum housing provides a lightweight and durable structure,
while the black anodized finish is suitable for professional industrial equipment.
The compact housing can be customized for OEM projects according to the customer's mechanical installation requirements.
The 650nm red line laser module is suitable for:
Used as a visible laser reference for equipment alignment and optical positioning.
Provides a clear red line for positioning and reference applications.
Can be integrated into measurement and inspection equipment requiring a visible laser reference.
Suitable for machine vision, equipment alignment and other industrial systems requiring a compact line laser source.
Designed for integration into optical and electronic instruments where a small visible laser module is required.
We provideOEM and ODM laser module customizationfor different equipment requirements.
Customization options include:
Customers can provide atechnical drawing, product specification or application requirements.
Our engineering team can review the requirements and provide a suitable laser module solution.
Φ9×21mm housing allows easy integration into compact equipment.
5° to 130° options provide flexibility for different applications.
APC control helps maintain stable laser performance during operation.
Wavelength, power, line angle, cable, connector and electrical configuration can be customized.
Suitable for prototype development, small-batch orders and volume production.
The standard wavelength is650nm ±10nm, producing a visible red laser line.
The standard housing size isΦ9×21mm.
Available options include5°, 15°, 30°, 45°, 60°, 90°, 110° and 130°. The standard configuration is 90°.
Yes. Different line angles can be selected according to the customer's working distance and application requirements.
Yes. The cable length and connector can be customized for OEM applications.
Yes.TTL control can be customizedaccording to the customer's electrical requirements.
Yes. Customers can send us atechnical drawing, specification sheet or existing samplefor evaluation.
