The520nm 5mW Green Line Laser Moduleis a compact semiconductor laser source designed for industrial positioning, alignment, leveling, marking and optical guidance applications.

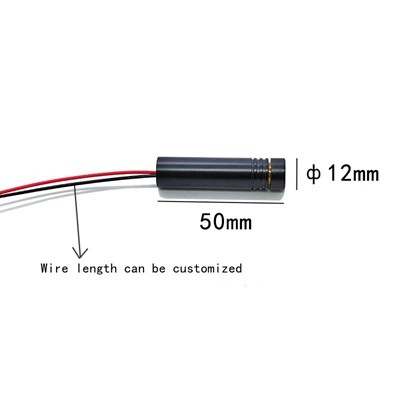

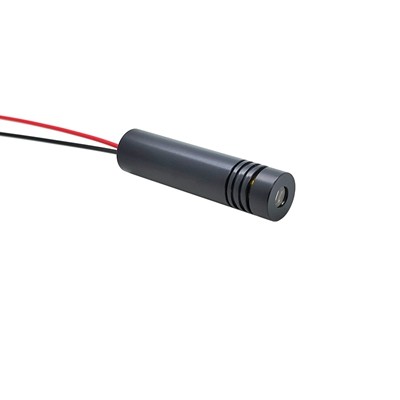

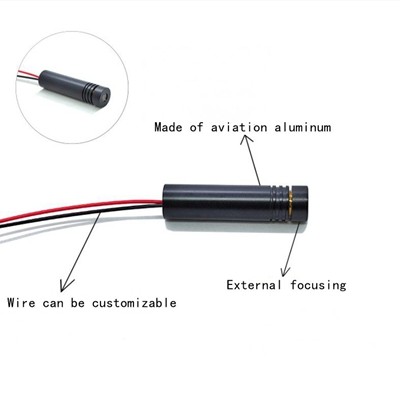

Featuring aØ12×50mm cylindrical housing, external focusing structure and APC control circuit, the module produces a bright, clear green laser line with adjustable line thickness.
Multiple fan-angle options from5° to 110°are available, with90° as the standard configuration. PhotexLaser supports customization of wavelength, output power, housing size, projection angle, working voltage, cable configuration and optical performance.
| Parameter | Specification |
|---|---|
| Product Type | Green Line Laser Module |
| Wavelength | 520nm |
| Output Power | 5mW |
| Beam Pattern | Line |
| Standard Size | Ø12×50mm |
| Working Distance | <3m |
| Line Thickness | Adjustable |
| Focus Mode | External Adjustable Focus |
| Standard Fan Angle | 90° |
| Optional Fan Angles | 5° / 15° / 30° / 45° / 60° / 90° / 110° |
| Circuit Control | APC |
| Operating Voltage | DC 9–25V |
| Working Current | <120mA |
| Operating Temperature | -10°C to +50°C |
| Storage Temperature | -20°C to +70°C |
| Service Life | >10,000 Hours Continuous Operation |
| Cable | 26# Red & Black Wire, Approx. 15cm |
| Optional Cable | 1m DC Female Plug Cable with Power Adapter |
| Safety Class | Class IIIA |
| Customization | Available |
The module produces a bright and uniform green laser line suitable for visual positioning and alignment.
Typical characteristics:
The line can be optimized according to the customer's required working distance.
Actual visibility and effective working distance may vary depending on ambient light, target surface and installation conditions.
Smaller angles are suitable for narrower and longer-distance line projection, while larger angles provide wider coverage at shorter distances.
The module uses anAPC control circuitto maintain stable optical output.
Electrical specifications:
Other voltage configurations can be customized according to application requirements.
Photex Laser provides customized 520nm green line laser modules for positioning, alignment, leveling, marking and industrial OEM applications.
