650nm 100mW Large Circle Laser Module

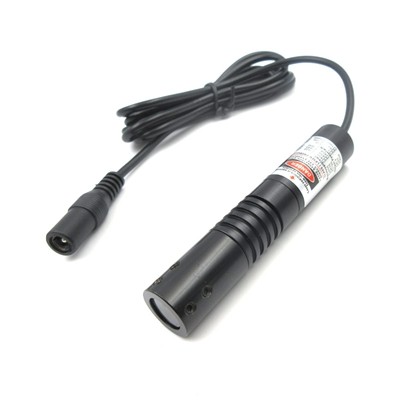

The 650nm 100mW Large Circle Laser Module is a compact semiconductor
laser source designed to project a clear and stable circular laser pattern forpositioning,
alignment, marking and optical applications.

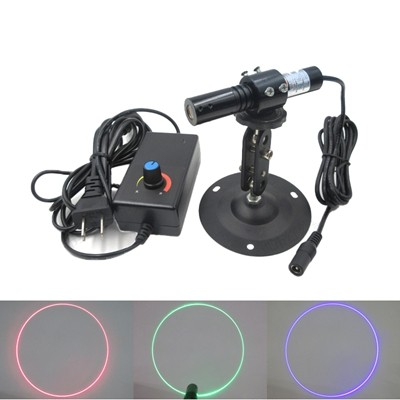

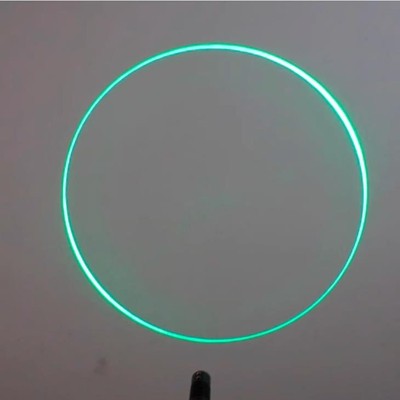

Featuring a 53° optical lens, the module generates a large circular laser beam
whose projected circle diameter changes according to the installation distance.
With an approximately1:1 circle-to-distance ratio,
a 1-meter working distance can produce a circular pattern of approximately 1 meter in diameter.
The optical system includes anadjustable lens ringthat allows users to fine-tune
the circular line thickness according to application requirements.
The adjustment changes theline width, not the overall circle diameter.
The circle diameter is mainly determined by theworking distance and installation height.
Moving the laser module closer to the target produces a smaller circle,
while increasing the distance produces a larger circular projection.
Available in650nm red, 520nm green and 450nm bluelaser options,
the module can be customized according to wavelength, output power,
optical angle, housing design and power configuration.
The 53° optical lens provides a wide-angle circular projection for
applications requiring a clearly visible reference circle.
The circular line thickness can be adjusted by rotating the optical adjustment ring.
After adjustment, gently secure the ring without applying excessive force.
Important:The adjustment ring controls thecircular line width, not the circle diameter.
The projected circle diameter is primarily affected by theworking distance / installation height.
Red:650nm
Green:520nm
Blue:450nm
Different wavelengths can be selected according to visibility,
working environment and application requirements.
| Parameter | Specification |
|---|---|
| Product Type | Large Circle Laser Module |
| Laser Type | Semiconductor Laser |
| Wavelength | 650nm |
| Output Power | 100mW |
| Optical Angle | 53° |
| Beam Pattern | Circular |
| Operation Mode | Continuous Wave (CW) |
| Light Color | Red |
| Optical Path | Internal Optical Path |
| Output Type | Power Output |
| Adjustment | Circular Line Thickness Adjustment |
| Channel | Single Channel |
| Customization | OEM / ODM Available |
Custom Laser Solutions
We provide customizedcircular laser modules for different equipment and optical systems.
With a compact optical design and adjustable circular line thickness,
this module provides a practical solution for applications requiring alarge,
stable and clearly visible circular laser reference.
OEM and ODM solutions are available for customers requiring
customized wavelengths, power levels, optical angles, mechanical dimensions or connection configurations.
