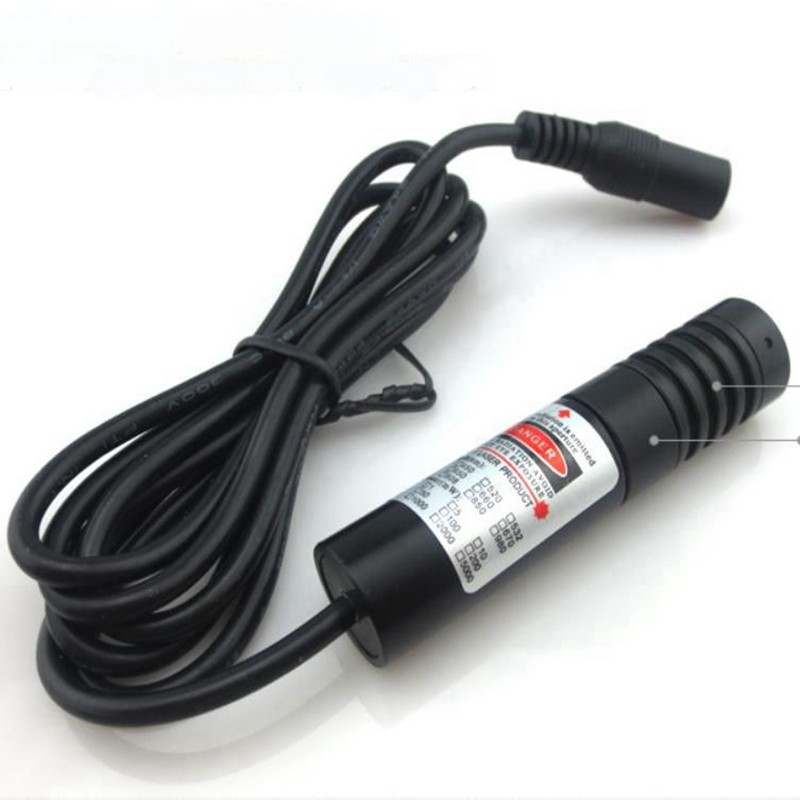

650nm Nebula Pattern Laser Module

The650nm Nebula Pattern Laser Moduleis a specialized optical projection laser designed to generate unique nebula-style laser patterns for positioning, decoration, optical experiments and industrial applications.

Featuring a high-stability650nm red laser diode, precision optical shaping technology and an aviation aluminum housing, this module provides clear, bright and uniform pattern projection with excellent thermal performance.

The adjustable optical structure allows customization of pattern size, line width, working distance and projection effects.

Photex Laser provides OEM/ODM laser solutions including custom wavelengths, power levels, housing dimensions and special beam patterns.

Key Features

• Nebula Pattern Laser Projection
• 650nm Visible Red Laser Output
• 100mW High Brightness Laser Source
• Special Optical Pattern Generation
• Adjustable Pattern Line Width
• Clear and Soft Light Effect
• High Stability Laser Diode
• 24-Hour Continuous Operation Capability

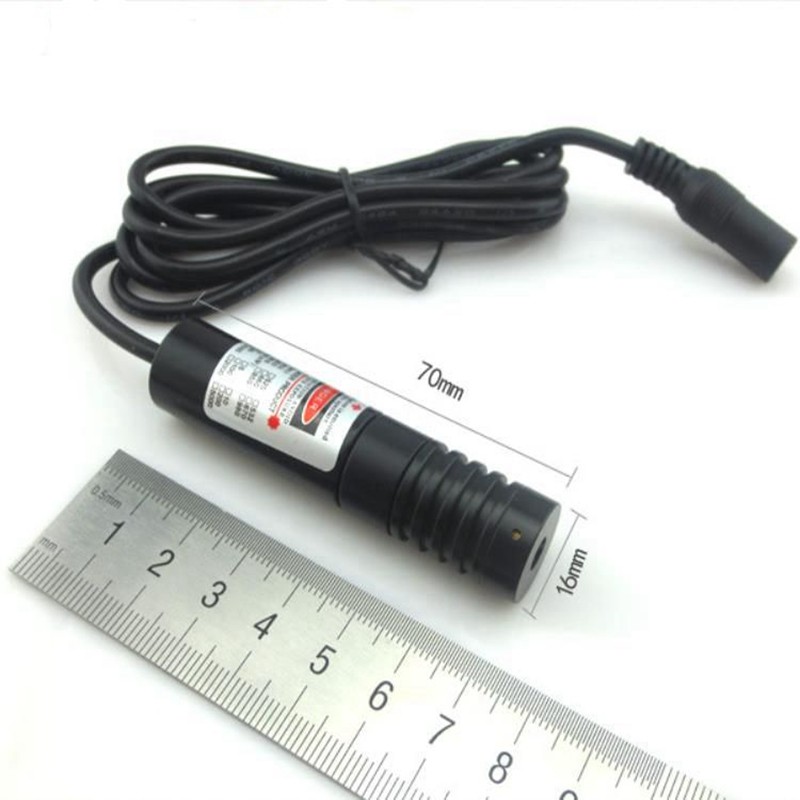

• Aviation Aluminum Housing
• Shock Resistant & Heat Dissipation Design
• Custom Pattern Solutions Available

Technical Specifications

Special Pattern Laser Module

Optical Performance

The module generates a unique nebula-style laser projection effect with a clear and bright pattern.

Pattern size relationship:

Installation Distance : Pattern Diameter = 2 : 1

Example:

• Working distance: 1m
• Pattern diameter: approximately 0.5m

The line width and pattern effect can be adjusted according to different application requirements.

Advantages

High Stability Laser Output

Imported laser diode technology provides:

• Stable wavelength
• Long operating lifetime
• Continuous 24-hour operation capability

Industrial Grade Housing

The aviation aluminum housing provides:

• Excellent heat dissipation
• Shock resistance
• Drop resistance
• Anti-static protection

Flexible Customization

Parameters can be customized:

• Wavelength
• Output power
• Pattern shape
• Pattern size
• Working distance
• Wire length
• Housing dimensions

Applications

Laser Projection & Decoration

Used for:

• Decorative lighting
• Stage effects
• Special projection systems

Industrial Positioning

Suitable for:

• Optical positioning
• Equipment alignment
• Visual marking

Scientific Research & Experiments

Used in:

• Optical experiments
• Demonstration equipment
• Teaching systems

Machine Vision & Inspection

Applicable for:

• Pattern recognition
• Optical detection
• Calibration systems

Customization Options

Photex Laser supports special pattern laser customization:

Wavelength Options

• 405nm
• 450nm
• 520nm
• 532nm
• 635nm
• 650nm
• 660nm
• 780nm
• 808nm
• 850nm
• 940nm
• 980nm

Pattern Options

• Nebula Pattern
• Dot Matrix
• Grid Pattern
• Line Pattern
• Cross Pattern
• Custom Optical Pattern
