  • 16x60mm 532nm 30mW Green Line Laser Module for Cutting Machines
  • 16x60mm 532nm 30mW Green Line Laser Module for Cutting Machines
  • 16x60mm 532nm 30mW Green Line Laser Module for Cutting Machines
  • 16x60mm 532nm 30mW Green Line Laser Module for Cutting Machines
16x60mm 532nm 30mW Green Line Laser Module for Cutting Machines16x60mm 532nm 30mW Green Line Laser Module for Cutting Machines16x60mm 532nm 30mW Green Line Laser Module for Cutting Machines16x60mm 532nm 30mW Green Line Laser Module for Cutting Machines

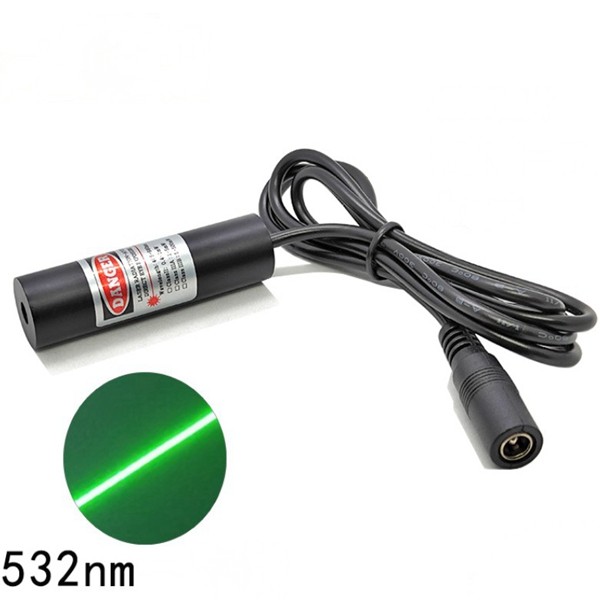

16x60mm 532nm 30mW Green Line Laser Module for Cutting Machines

  • Product Item : 16X60MM532NM30MW
  • Category: Line Laser Module

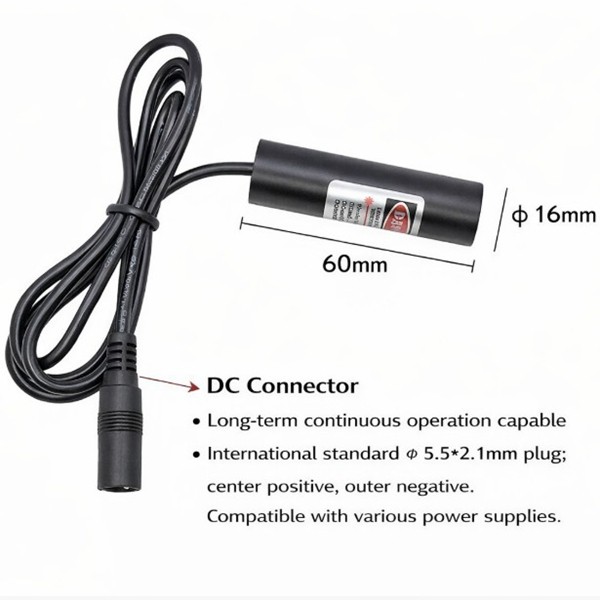

  • Size :Φ16 × 60 mm (Custom sizes available)
  • Material: Aviation-grade aluminum (all-metal housing)
  • Lens material: Glass cylindrical line lens
  • Surface Finish / Color: Black, anodized matte black finish
  • INQUIRY   EMAIL
Focusing Method:Fixed focus
Circuit Control:AC circuit
Operating Voltage:2.7 – 5.2 VDC
Operating Current:I < 350 mA
Operating Temperature:+15°C to +35°C
Storage Temperature:-20°C to +70°C
Service Life:
Continuous operation > 10,000 hours
Output Cable:

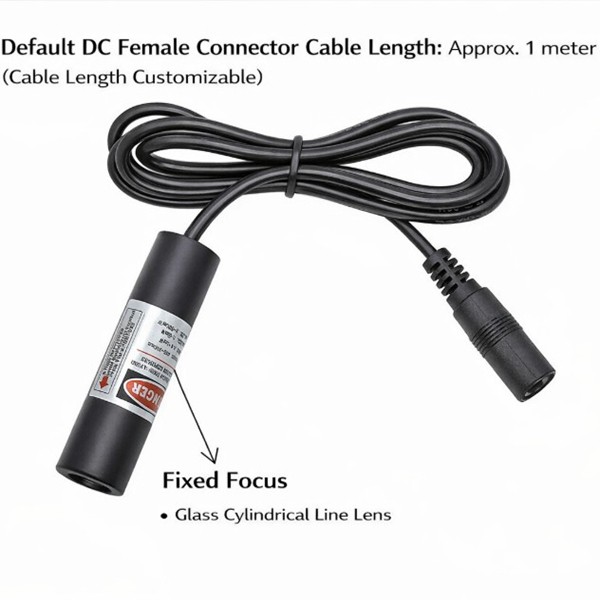

Default DC female connector cable, approx. 1 meter
(Customizable: red/black wire, jacketed cable, or standard terminal wire)
Laser Safety Class:Class IIIB
Package Contents:
1 × Laser ModuleApplications:

Industrial laser alignment, aiming devices, laser tools,

instrumentation equipment, medical devices (healthcare instruments),

military applications, security and identification systems, stage lighting,

tools, USB devices, mobile phones, projection teaching pens,

temperature measuring devices (distance measurement),

scanners, line marking instruments, spirit levels,

electronics hobby projects, indoor and outdoor decoration products, and more.
